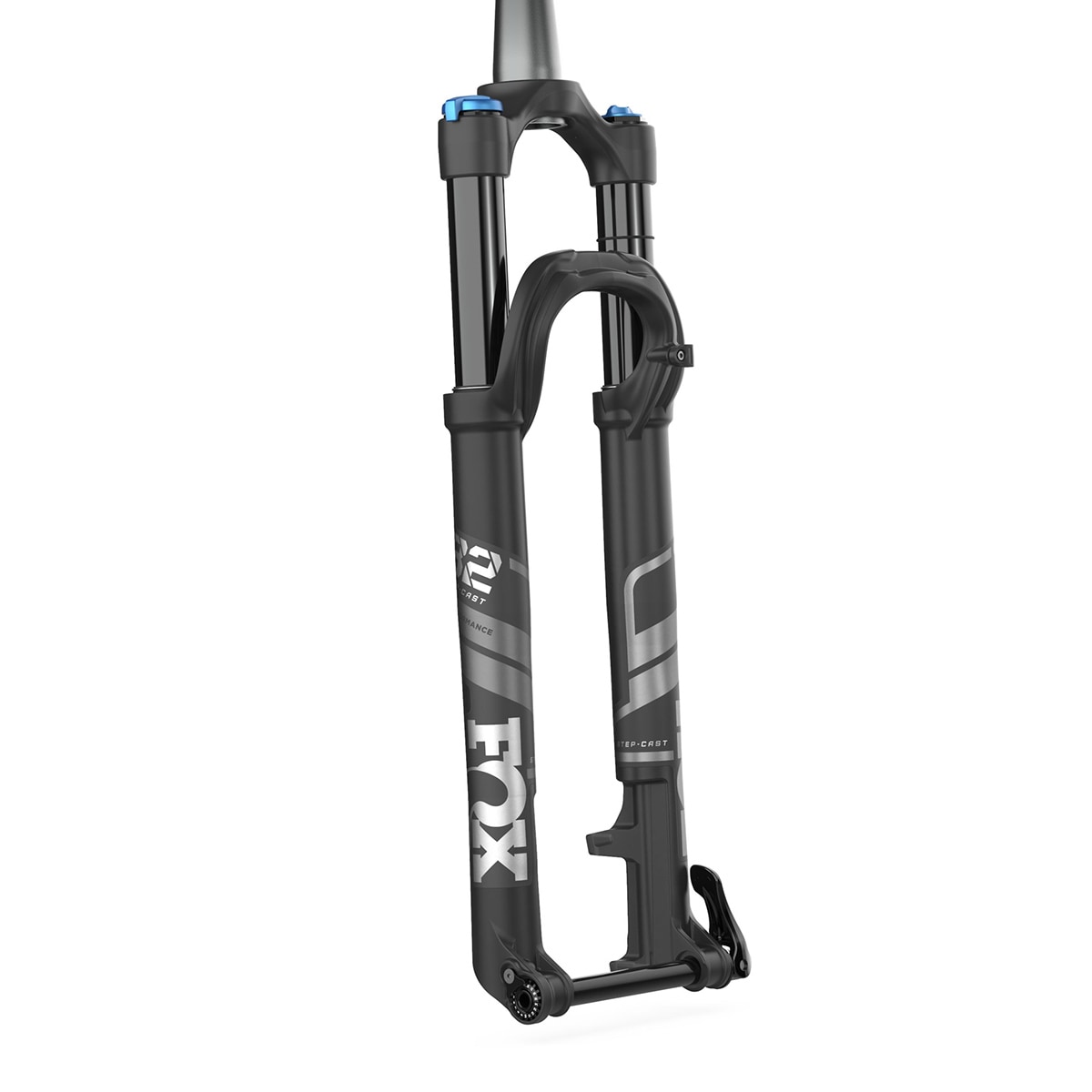

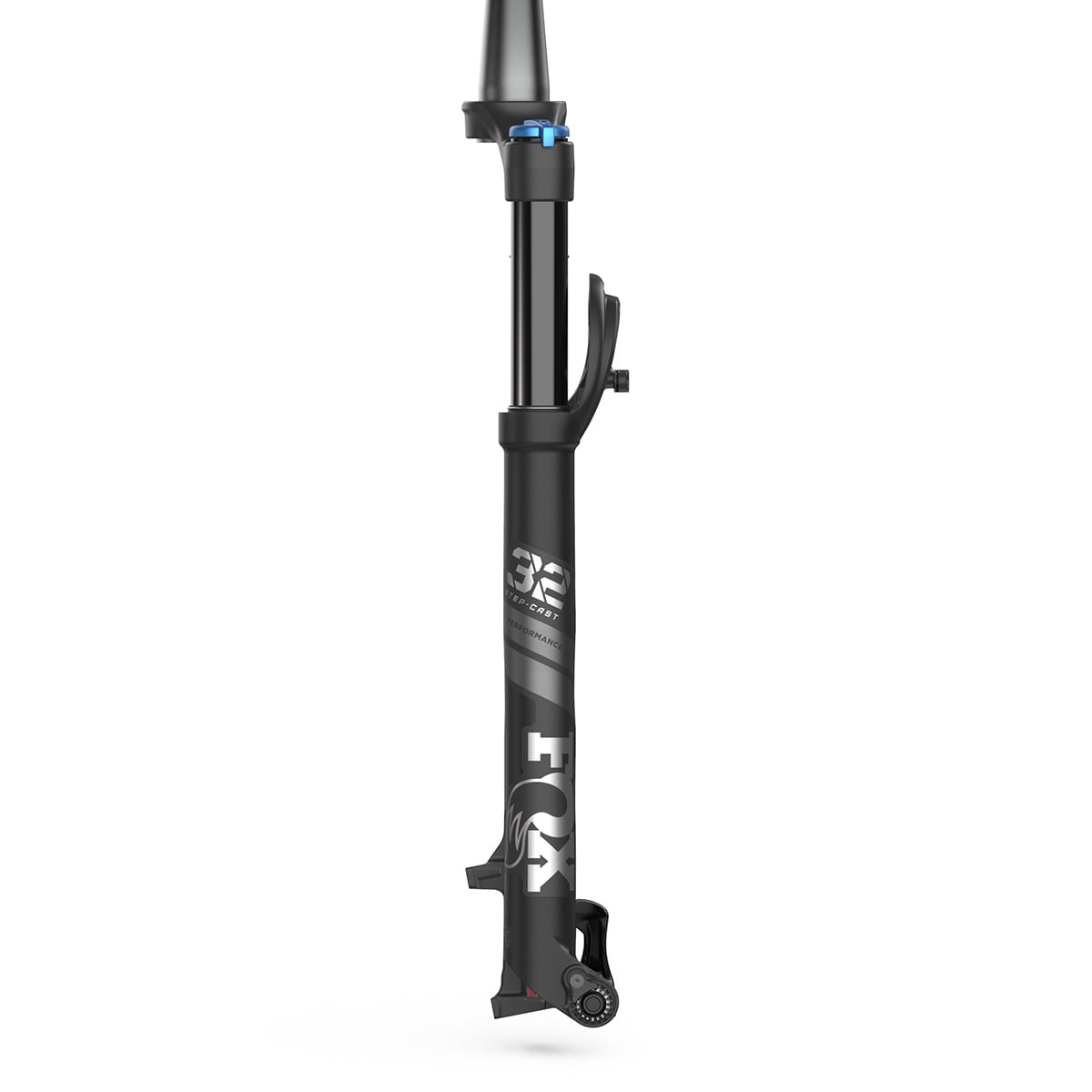

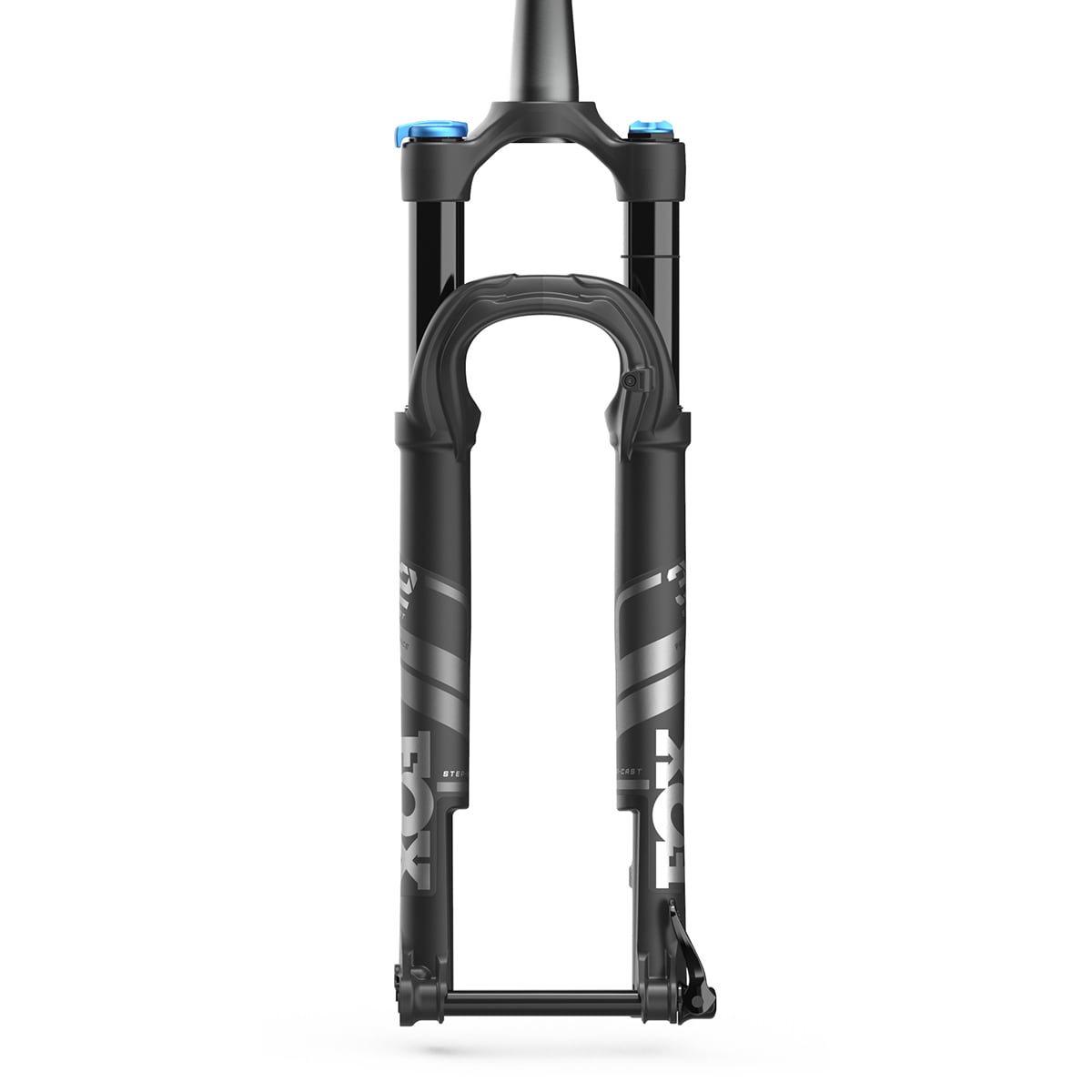

Fox 32 Step-Cast Performance 2021 Float GRIP MTB suspension fork 15 x 110

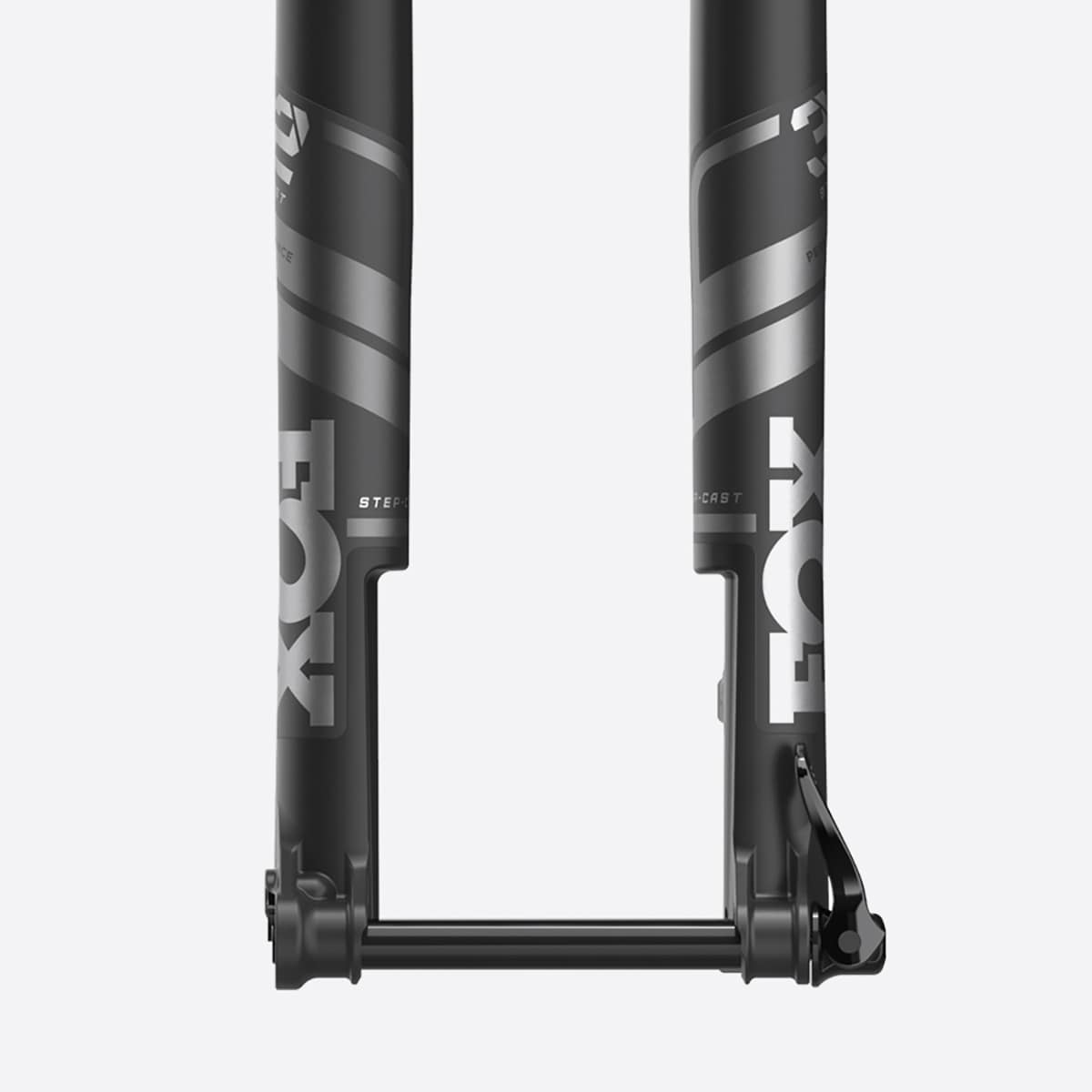

The forks of the Performance series mark the entry to the world of the high-quality suspension forks by the US American chassis specialist FOX. FOX’s 32 Step-Cast Performance suspension fork benefits directly from the technologies and experiences from many years of elite racing sports. It uses for example the Step-Cast design that was first introduced with Factory forks in order to save weight with a significantly slimmer construction. The distinctive step at the bottom of the lower fork tubes creates sufficient space for brake discs and spokes to be able to maintain the hub width of the wheels. The special fork crown of the Step-Cast forks also ensures extremely high torsional and braking stiffness, which is absolutely necessary on today's increasingly tough XC courses!

Thanks to the improved Float-EVOL air spring with enlarged negative chamber and user-friendly 3-Pos FIT4 damping cartridge, the 32 Factory impresses with very sensible responding qualities, a linear spring characteristic with a good amount of support in the middle travel range and easy adaptation to the individual requirements. Being limited to 3 perfectly fine-tuned positions, the compression can be adjusted easily and the rider only has to concentrate on adjusting the rebound and air pressure. This way, even hobby pilots are not overchallenged with too many adjustment options.
In addition, the progression of the spring characteristic curve of the FOX 32 Step-Cast Performance can be adapted to your own needs with volume spacers.

Details:
• Intended use: Cross-Country, Marathon
• Casting with Step-Cast design and Kabolt screw axle
• Special fork crown for increased stiffness
• Volume spacers for spring rate adjustment

Technical details:
• Wheel size: 27.5”
• Material: aluminium (fork crown/upper tubes), magnesium (lower tubes)
• Coating: anodised (black)
• Steerer: Tapered 1 1/8"-1.5 threadless, approx. 264 mm
• Upper tube Ø: 32 mm

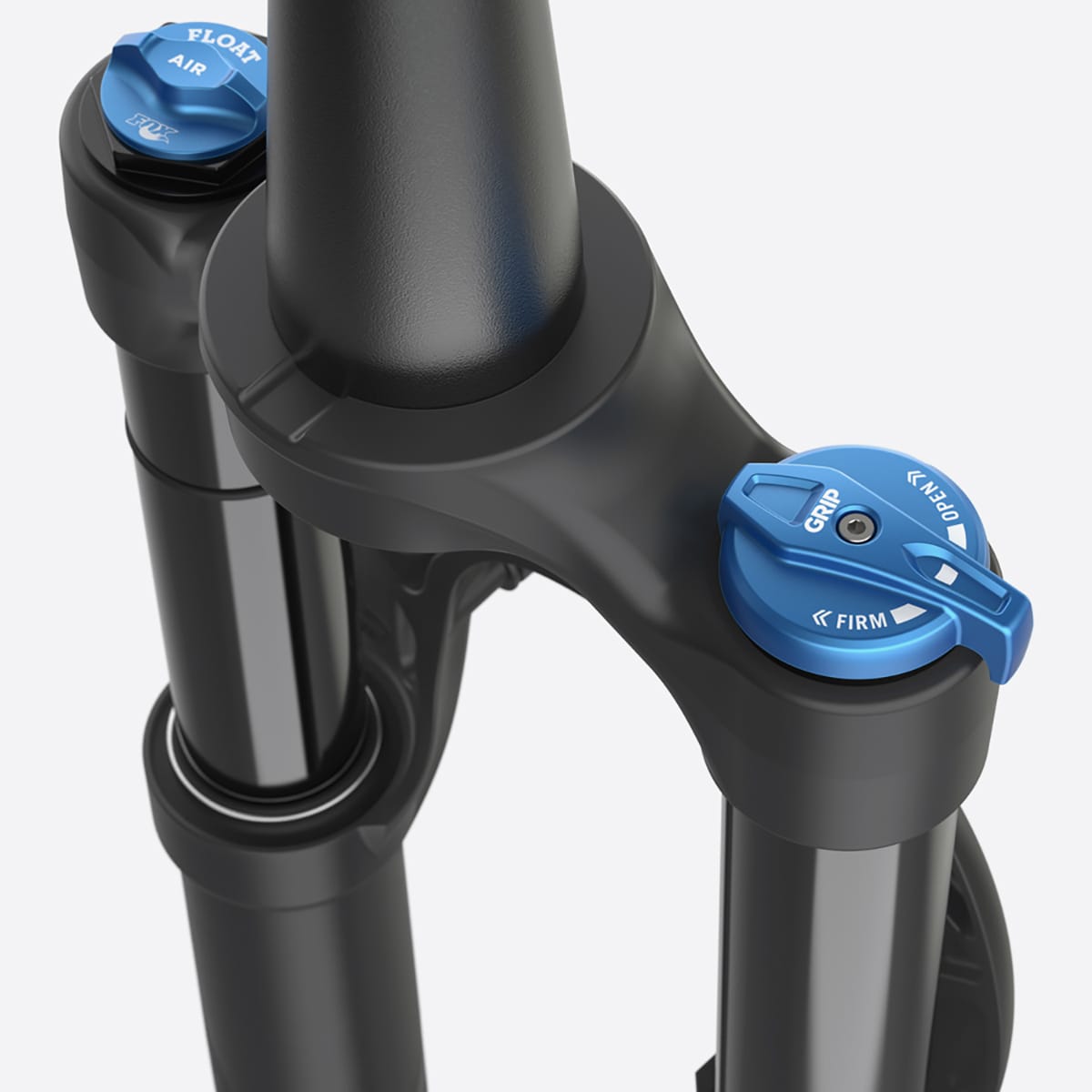

• Suspension: Float EVOL

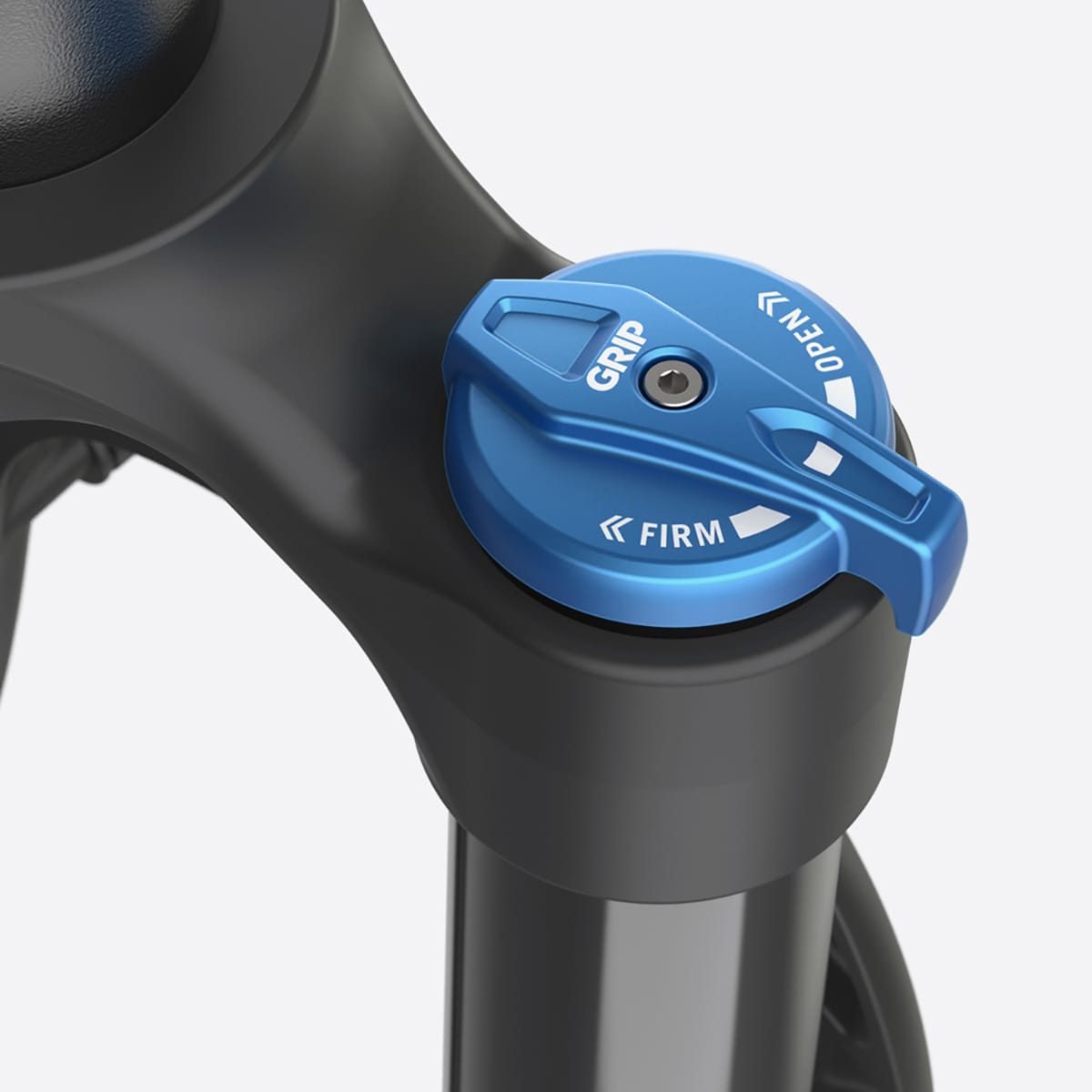

• Damping technology: GRIP 3Pos (Open, Medium, Firm)

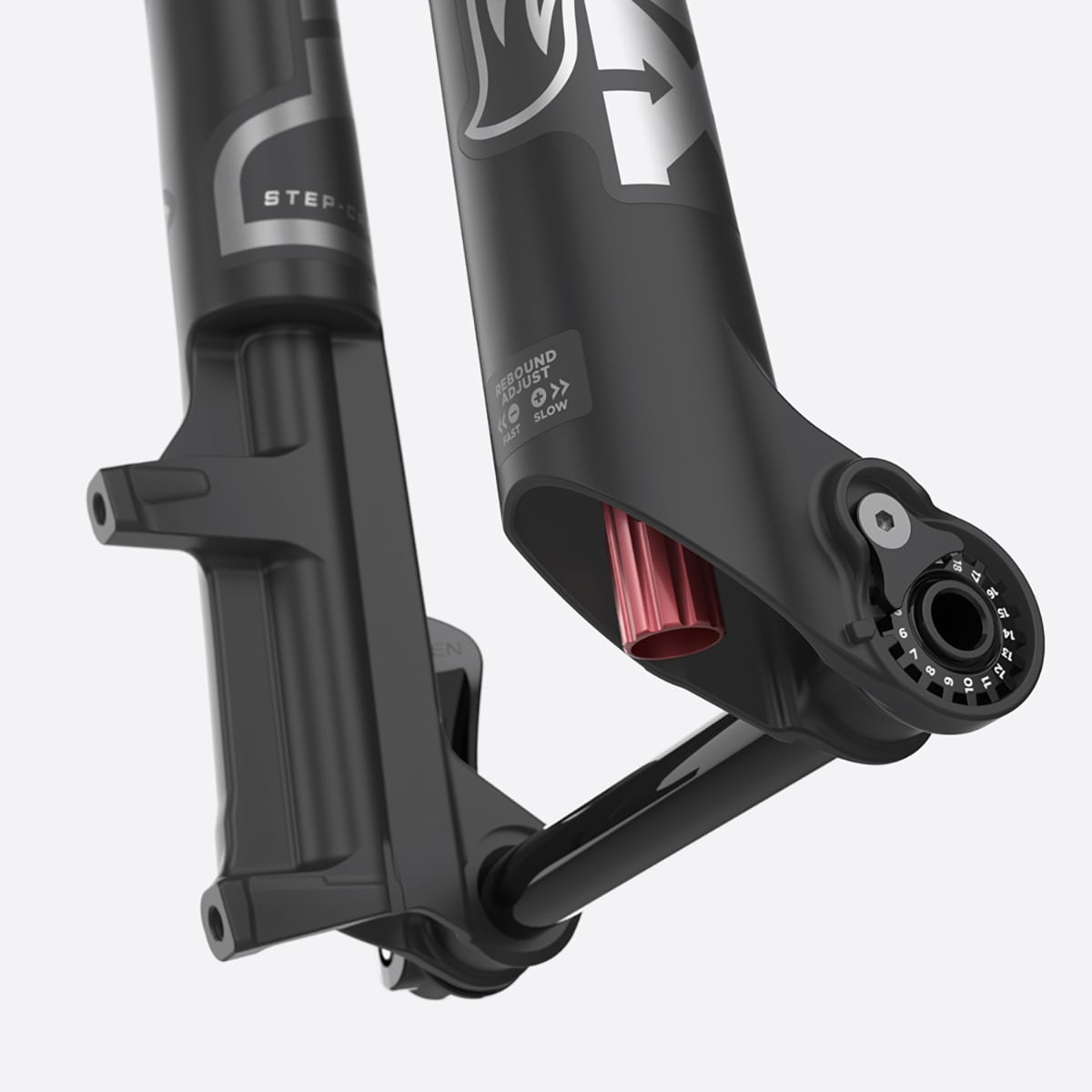

• Adjustments: air pressure, external rebound, external low-speed compression (3 positions)
• Remote: no
• Disc brake mount: PostMount 6" (160 mm Direct Mount)
• Front hub spacing: 15 x 110 mm (Boost)
• Weight: approx. 1561 g


27.5":
• Travel: 100 mm
• Offset: 44 mm
• Max. brake disc Ø: 180 mm
• Fork length: 487.7 mm


In the box:
FOX 32 Step-Cast Performance suspension fork incl.
• 1 x thru axle
• 1 x (brake) hose guide
• 1 x Ahead star nut
• 3 x volume spacers



Manufacturer: Fox Factory, Inc., 2055 Sugarloaf Circle, Suite 300, Duluth GA 30097, USA, www.ridefox.com
Responsible person: Fox Factory GmbH, Gewerbepark 6, 66989 Höhfröschen, Germany, www.foxracingshox.de
