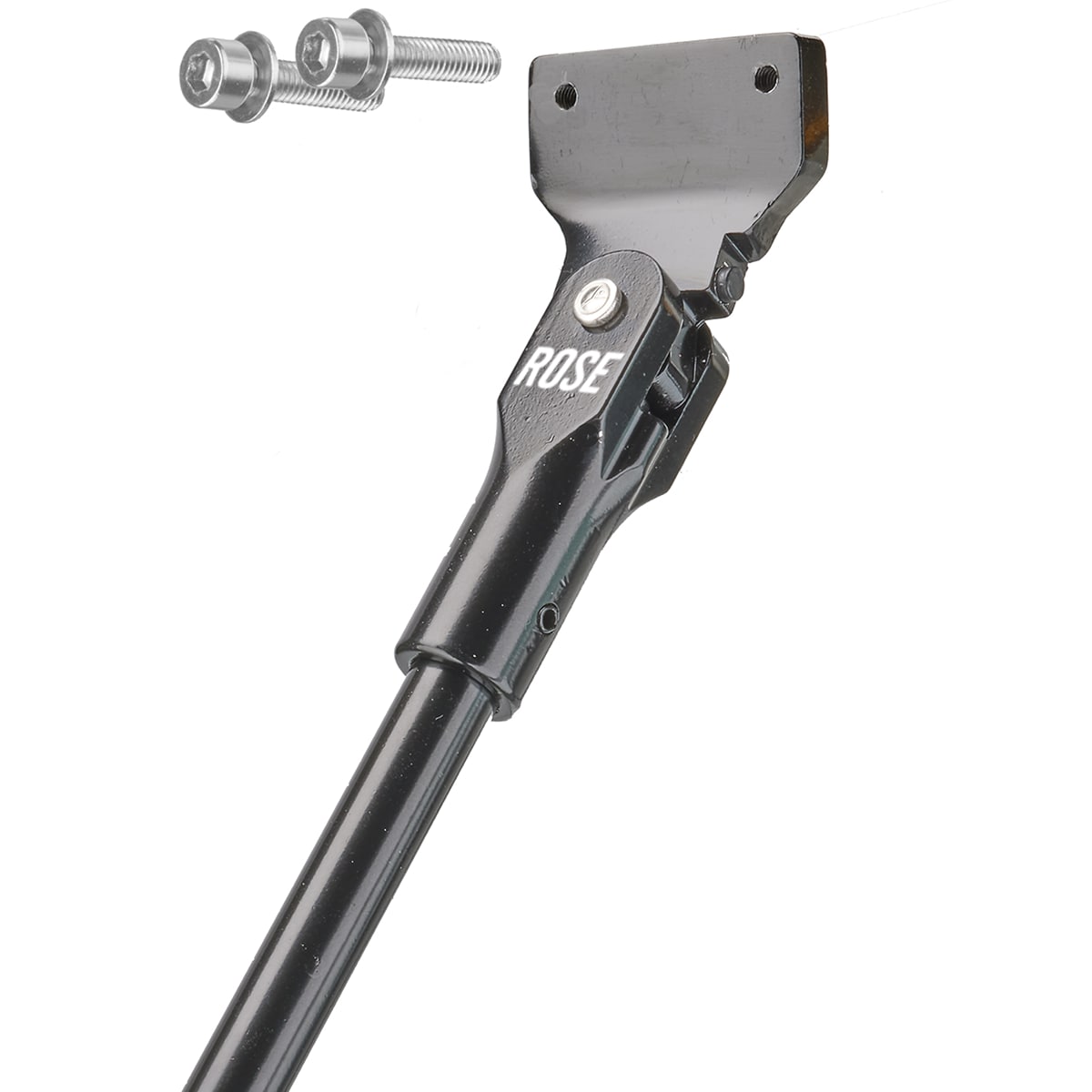

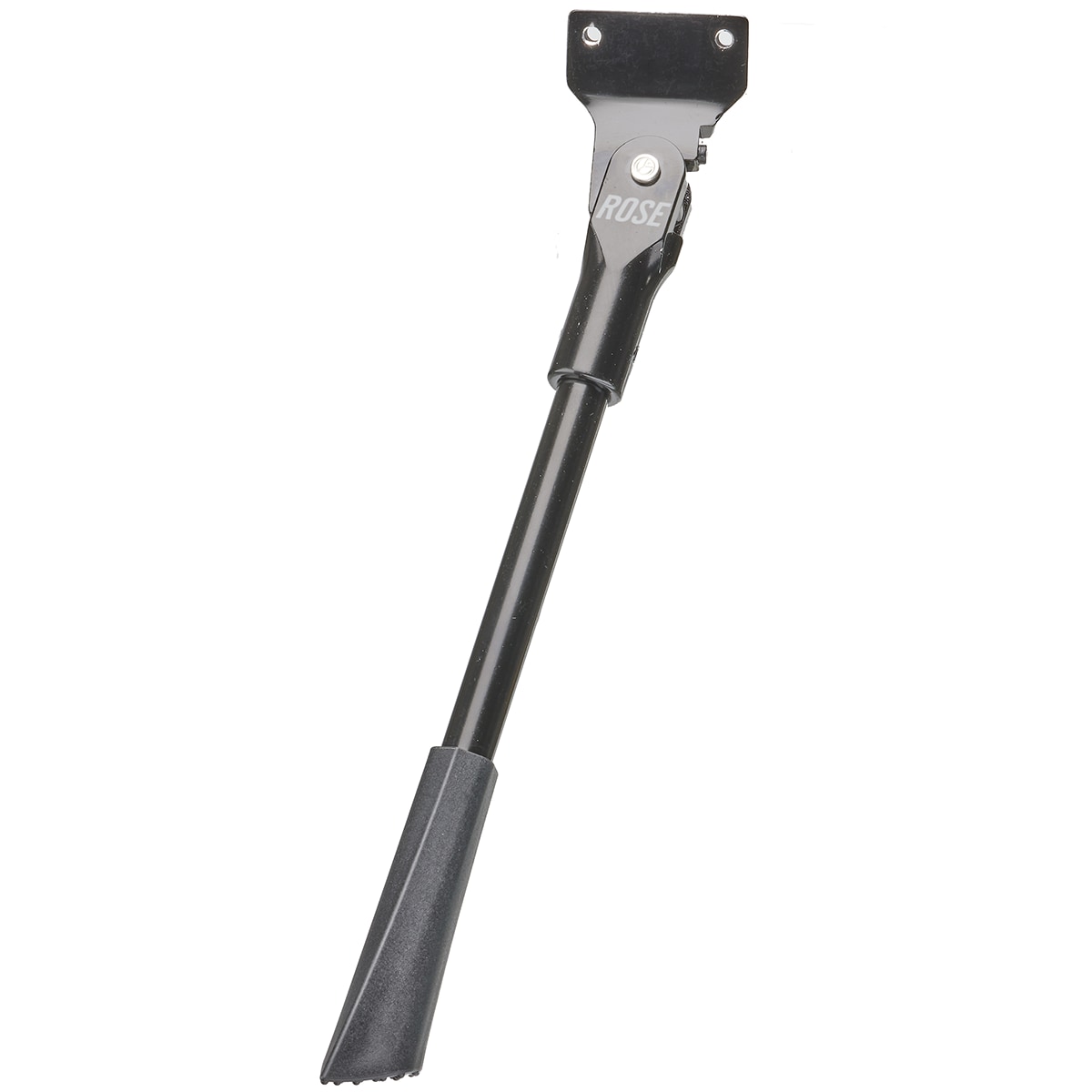

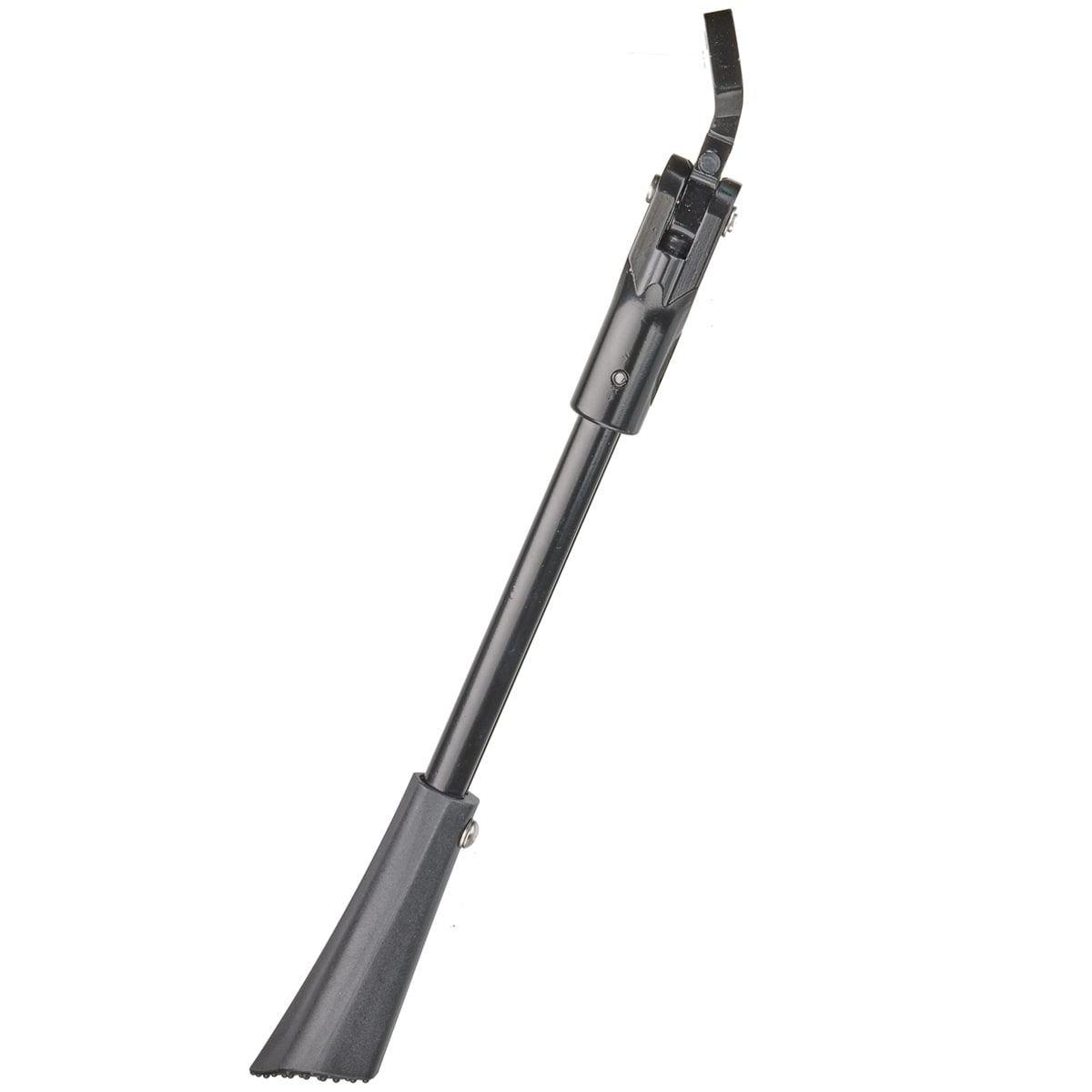

ROSE DIRECT SC-40 Rear Kickstand 26″-29″ KSA 40

The Rose DIRECT SC-40 is a lightweight and stable kickstand for direct mounting on bicycle frames with KSA 40 standard. Thanks to its high load capacity, it is suitable for both bicycles and e-bikes. Despite its slim design, it offers solid features that you can rely on.

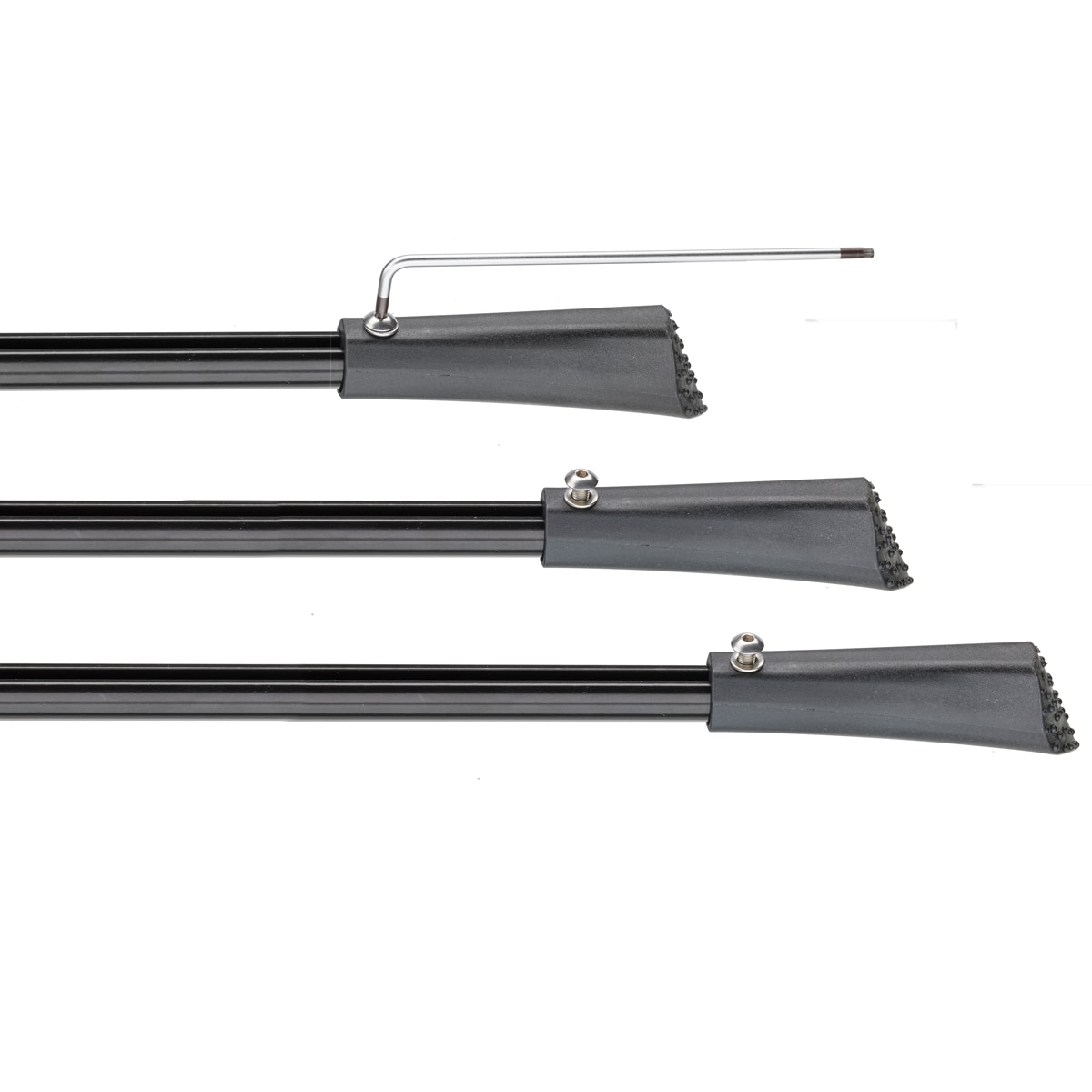

The profiled stand base ensures a good grip even on unpaved surfaces and can be infinitely adjusted in height.

The holes in the chainstay of your bike must not be threaded for mounting. Screws in various lengths are included so that you can attach the rear kickstand correctly.

Details:
• Lightweight rear kickstand for direct bolting to frames with KSA 40 standard
• Suitable for all bikes, ideal for e-bikes (pedelecs)
• Maintenance-free, taut spring mechanism
• Dampened stop when folding in
• Functional and simple design
• Profiled foot, also for sandy, slippery surfaces

Technical details:
• Material: aluminium alloy (painted), steel, plastic
• For bikes with 26” – 29” tyres
• Length adjustability: approx. 65 mm (continuously)
• KSA mount: for 40 mm bolt spacing
• Weight: approx. 265 g
• Maximum load: 50 kg

Compatibility:
• Mounting on threadless holes in the chainstay

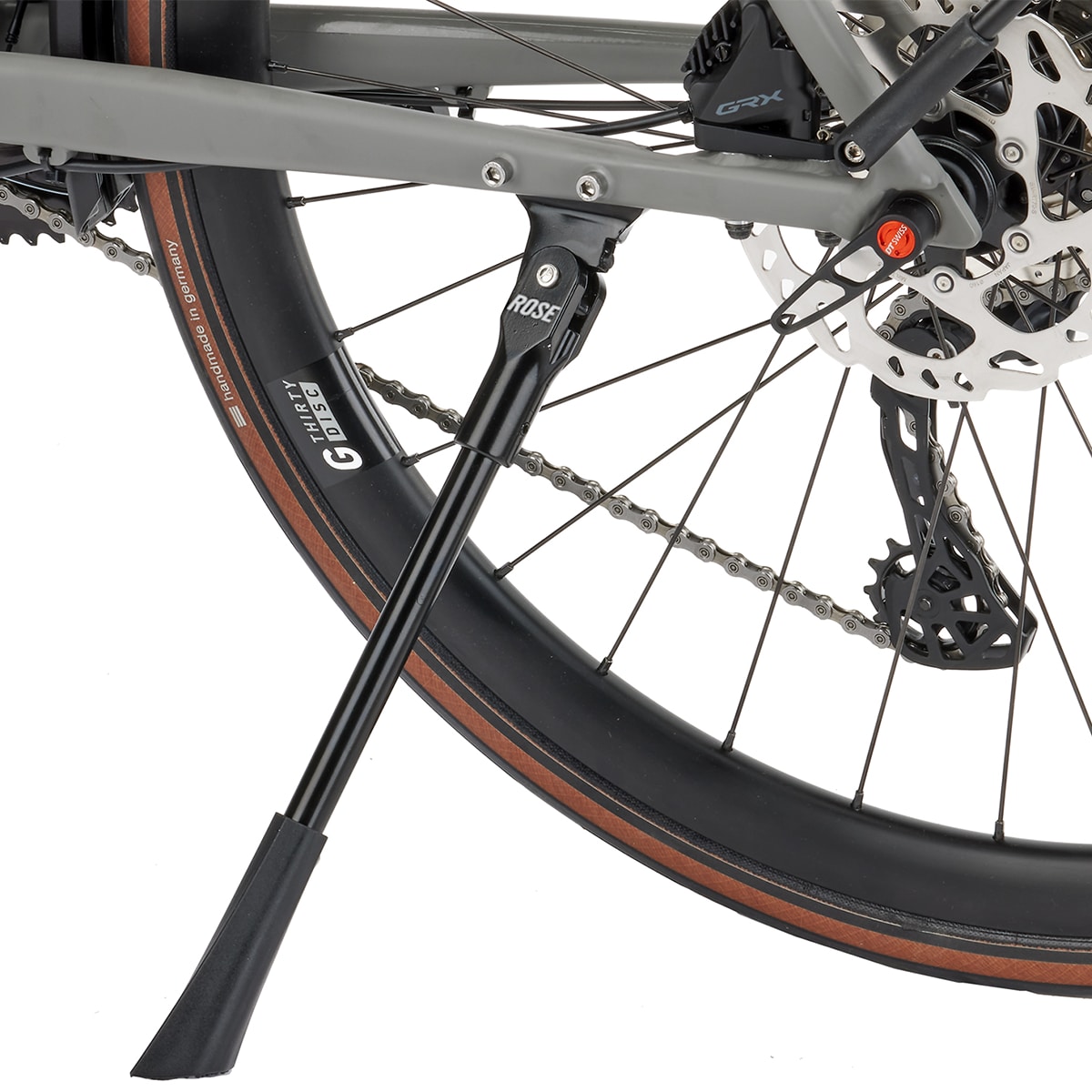

• The stand can be bolted to the inside or outside of the chainstay

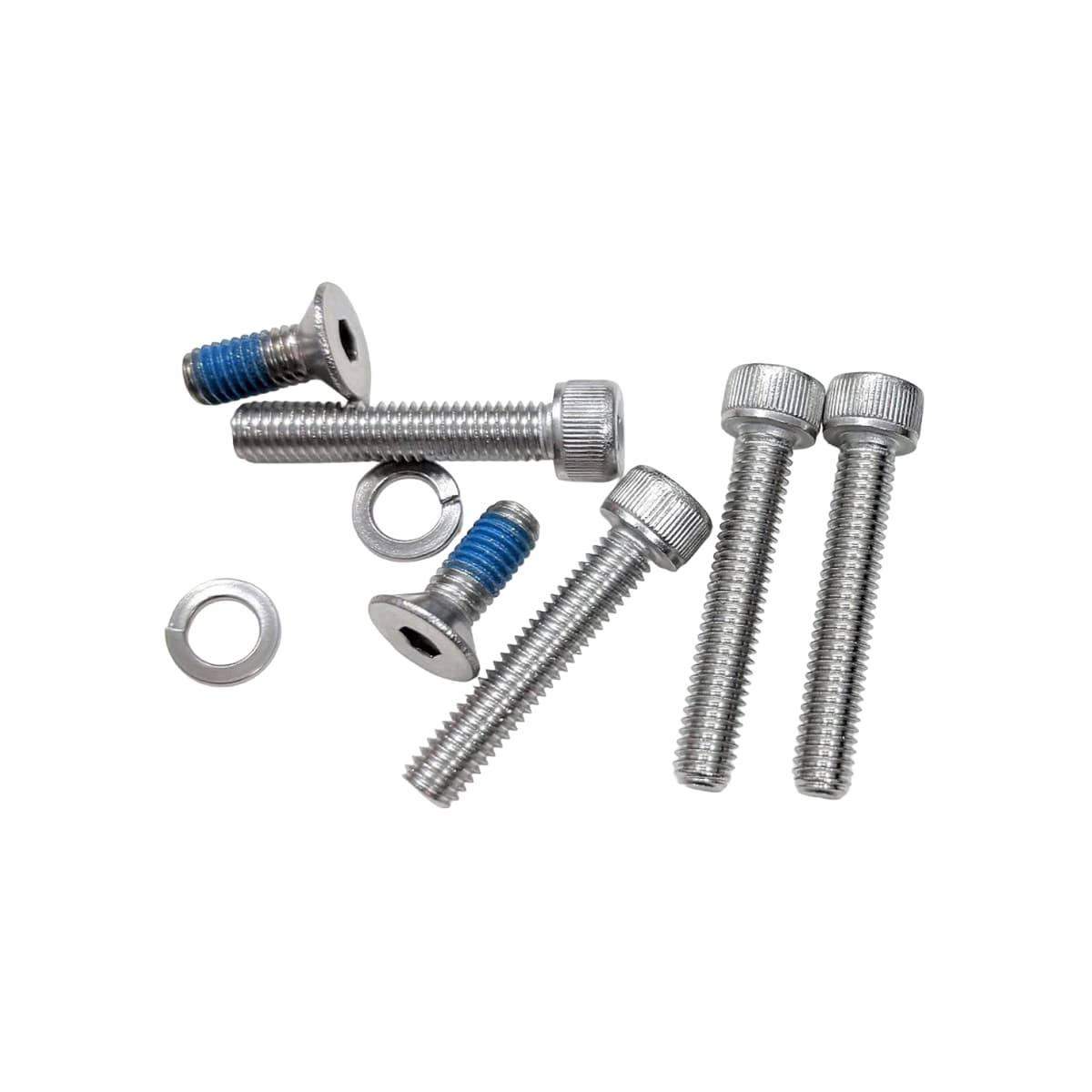

In the box:
• 1 Rose DIRECT SC-40 rear mount kickstand
• 2 M6 x 16 countersunk head screws
• 2 M6 x 30 screws
• 2 M6 x 35 screws
• 2 U-washers

Tip:
For frames with KSA 18 standard (chainstay with threaded mounts), this kickstand version is also available as the Rose DIRECT SC-18 COMP (prod. code: 1597650001).

Manufacturer: ROSE Bikes GmbH, Schersweide 4, 46395 Bocholt, Germany, www.rosebikes.de
