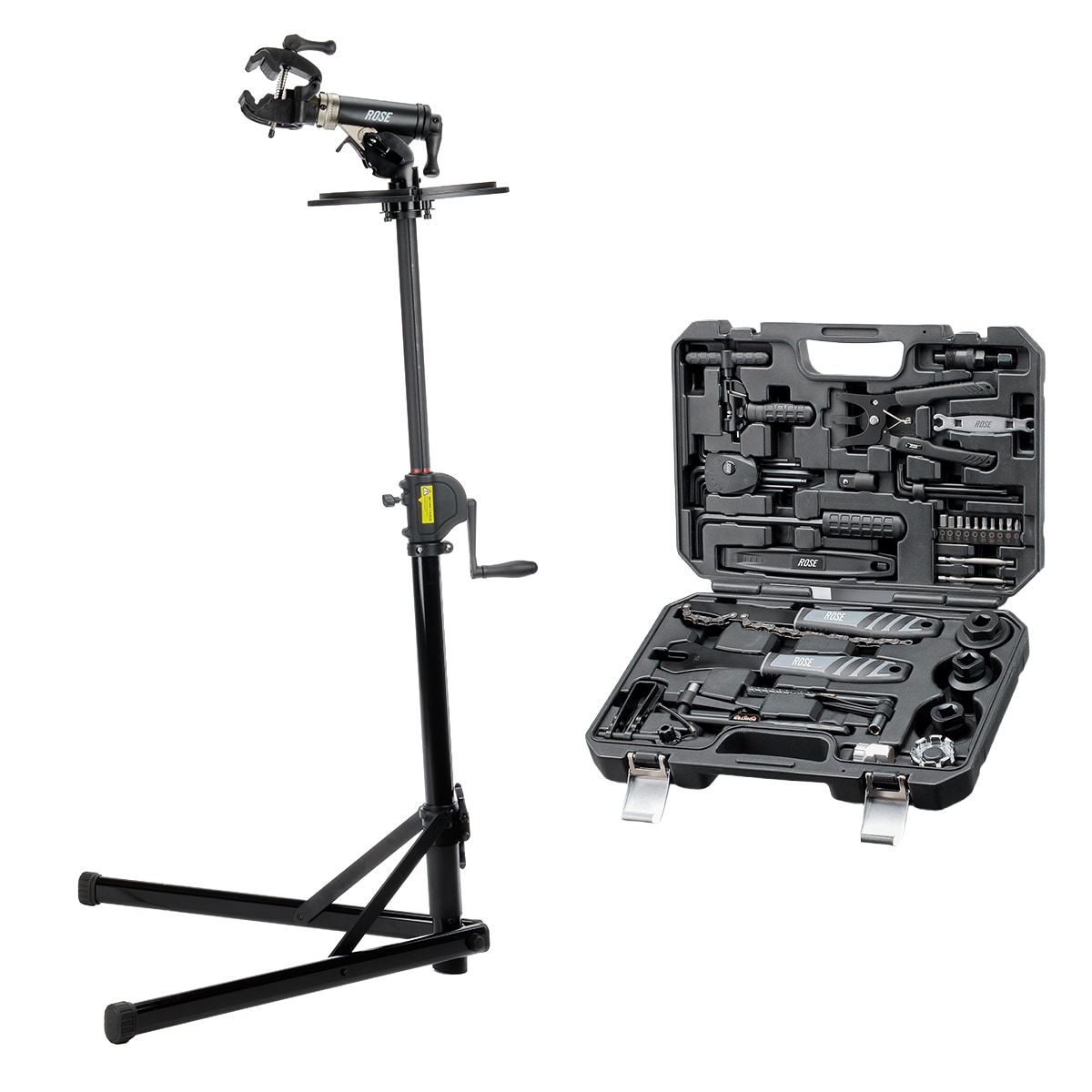

Rose S 5000-E HD Workstand With Mechanical Lifting Function + ALL2GETHER E-Bike Tool Box

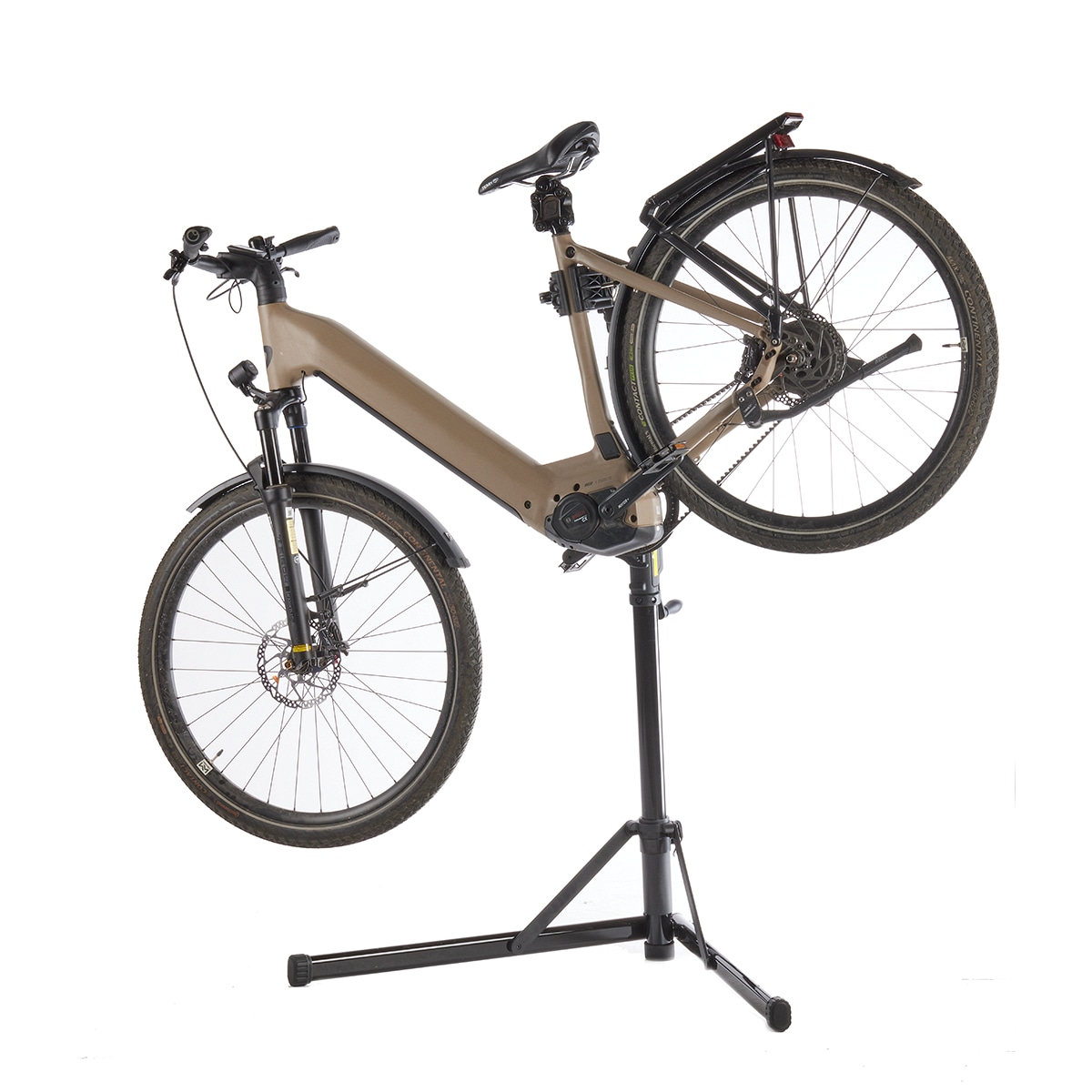

With the Rose S 5000-E HD, you can bring the comfort of professional assembly stands to your home. The stable stand comes with a built-in, infinite adjustment via hand crank, which works like a lift. With its load capacity of up to 50 kilograms, the assembly stand makes work on heavy bikes and e-bikes much easier.

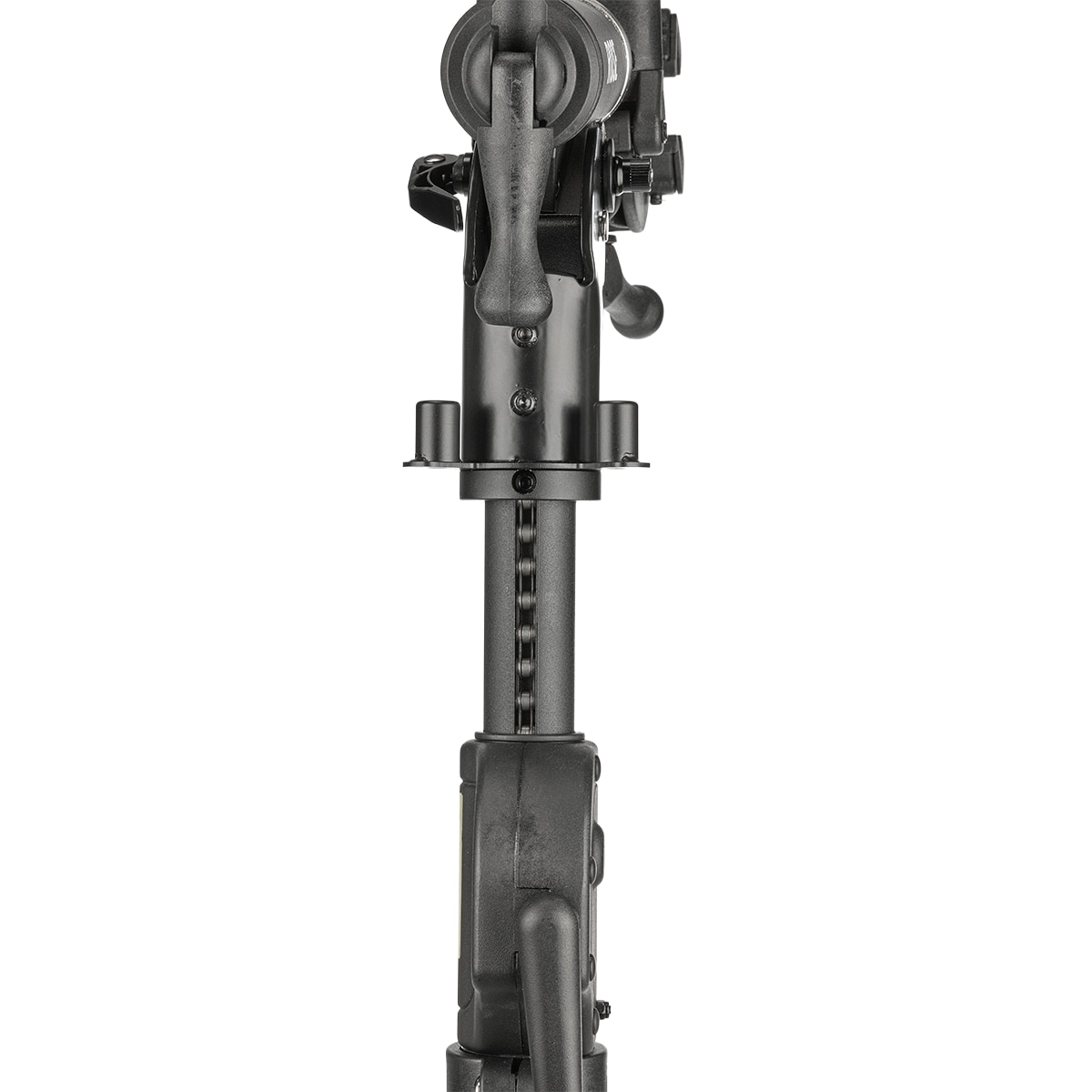

The robust chain system is modelled on professional workshop stands. You no longer have to lift heavy bikes all the way up. Instead, you can raise them to the desired working height using the hand crank or a cordless screwdriver with a 9 mm socket wrench.

The stand can be infinitely adjusted to a working height of approx. 1.45 metres. Solid standpipes with stabilising diagonal struts ensure a particularly high level of torsional stability. Between the rubberised clamping jaws, the rotating claw holds your bike securely at its frame or seat post. The tool tray makes sure that your tools are always within reach.

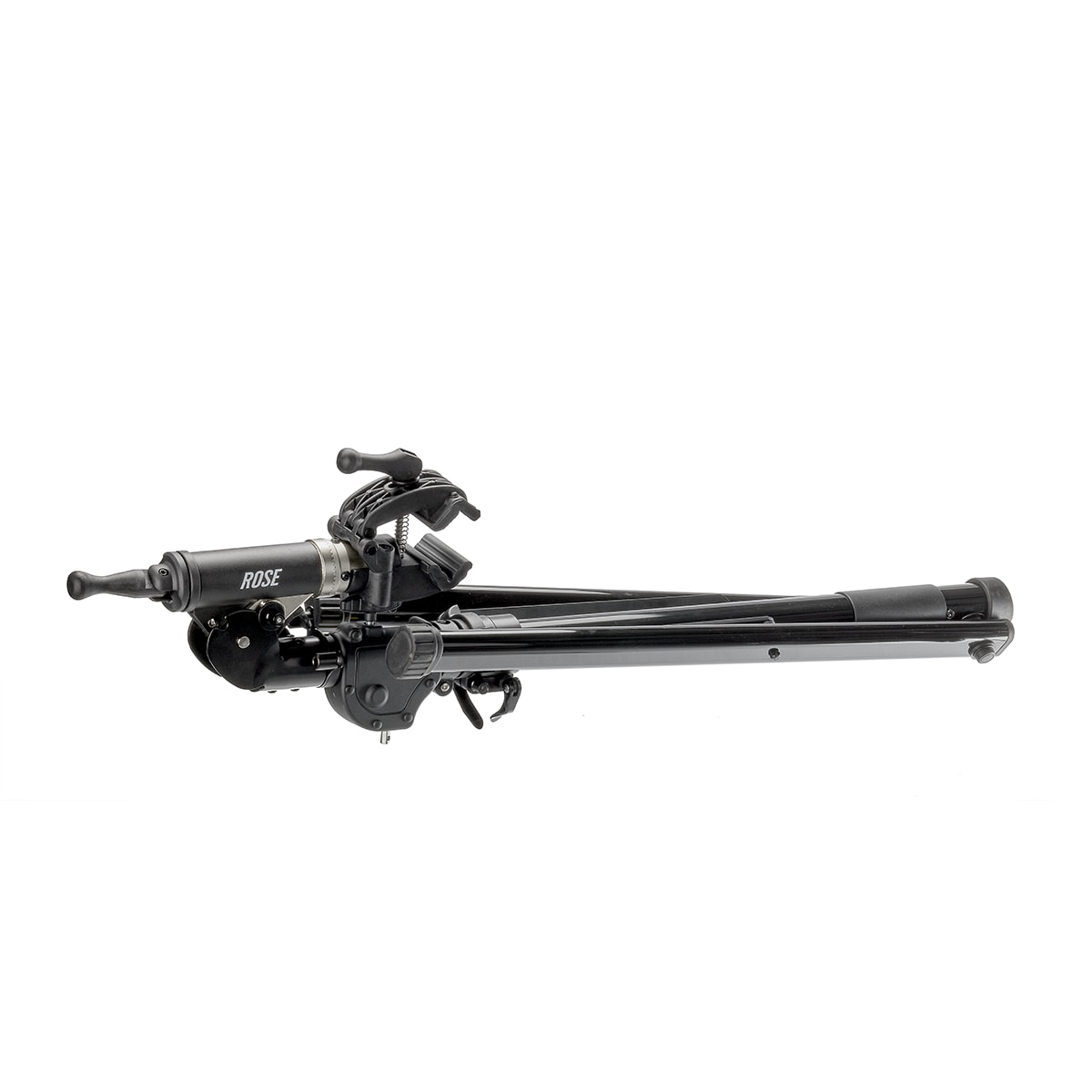

When the stand is not in use, it can be folded up compactly so that it hardly takes up any space when stored.

Details Rose S 5000-E HD workstand with mechanical lifting function:
• Mechanical workstand with lifting function for repair and maintenance works

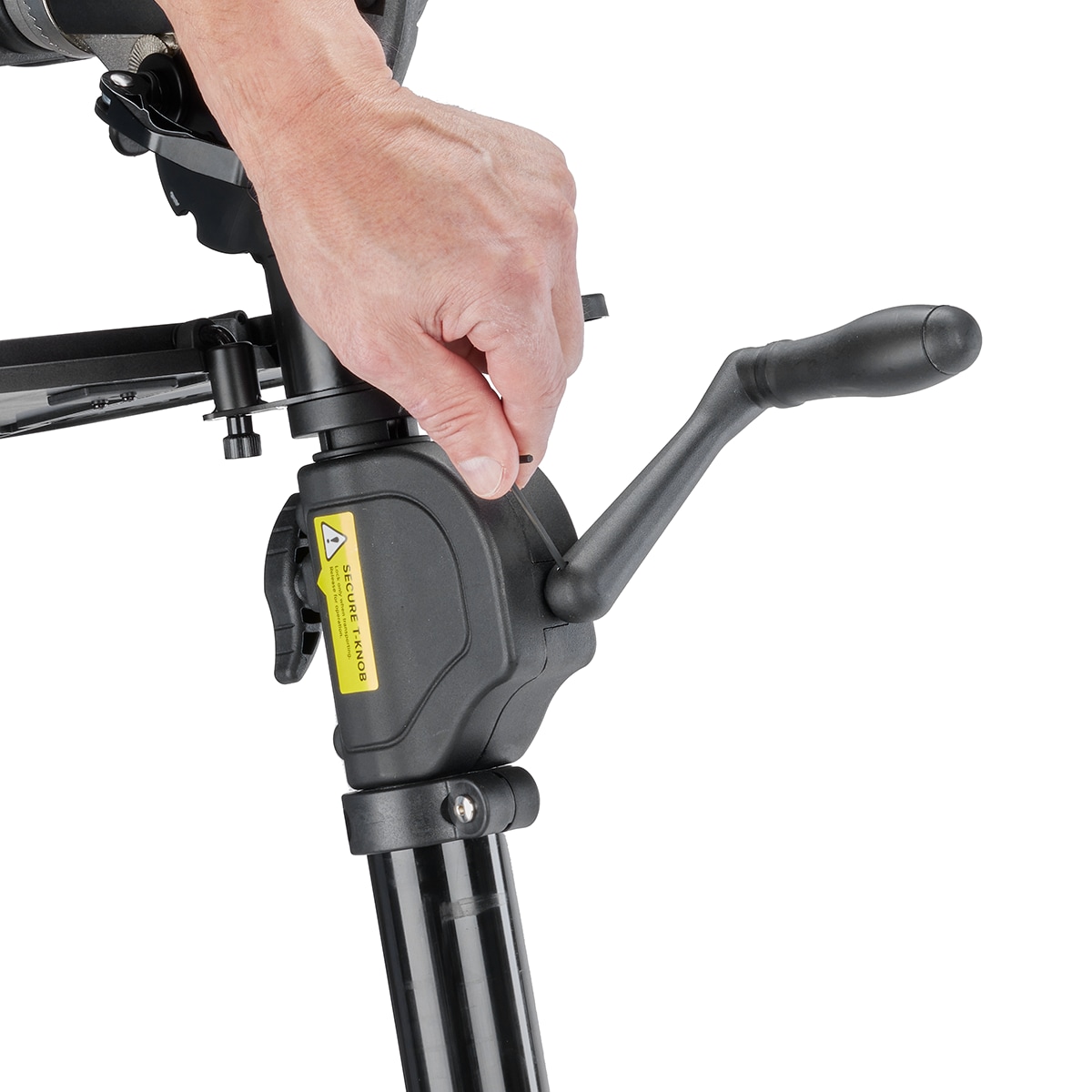

• Infinite height adjustment with hand crank
• Height adjustment also possible with cordless screwdriver with 9 mm socket wrench
• High ergonomics thanks to variable mounting height
• For bike frames with various tube diameters and shapes
• Also suitable for a heavy e-bike / e-MTB, thanks to high load capacity
• Torsion-resistant telescopic arm with 3-way guide
• Particularly rigid construction with approx. 50 mm standpipe
• Easy, tool-free adjustment
• Quick-release system for legs, height adjustment and arm
• Additional safety clamp against unintentional lowering
• 360° rotatable clamping head with fine toothing in 9° steps
• Strong retaining claw on arm
• For bike frames and components with tube Ø of approx. 20 – 60 mm
• With horizontal jaw adjustment for optimum tube clamping
• Clamping pressure can be precisely adjusted with ergonomic rotary knob
• Wide rubberised jaws for even pressure distribution
• Secure clamping with cam-type clamp and quick-release mechanism
• Tripod with three-point support and diagonal struts for high stability
• Non-slip rubber feet
• Easy (un)folding of legs
• Including all-round rotating tool plate (removable)
• Includes plug-in tool tray
• Foldable to save space

Technical details Rose S 5000-E HD workstand with mechanical lifting function:
• Material: aluminium, steel, plastic
• Carrying load: max. 50 kg (centrally over legs)
• Working height: approx. 104 – 145 cm (floor – centre retaining claw)
• Rotation of clamp: 360°
• For tube Ø from approx. 20 to 60 mm
• Width of clamp jaws: approx. 85 mm
• Stand dimensions (W x H x D): approx. 107 x 115 x 72 cm
• Transport dimensions: approx. 18 x 106 x 30 cm (without crank)
• Weight: approx. 8.2 kg

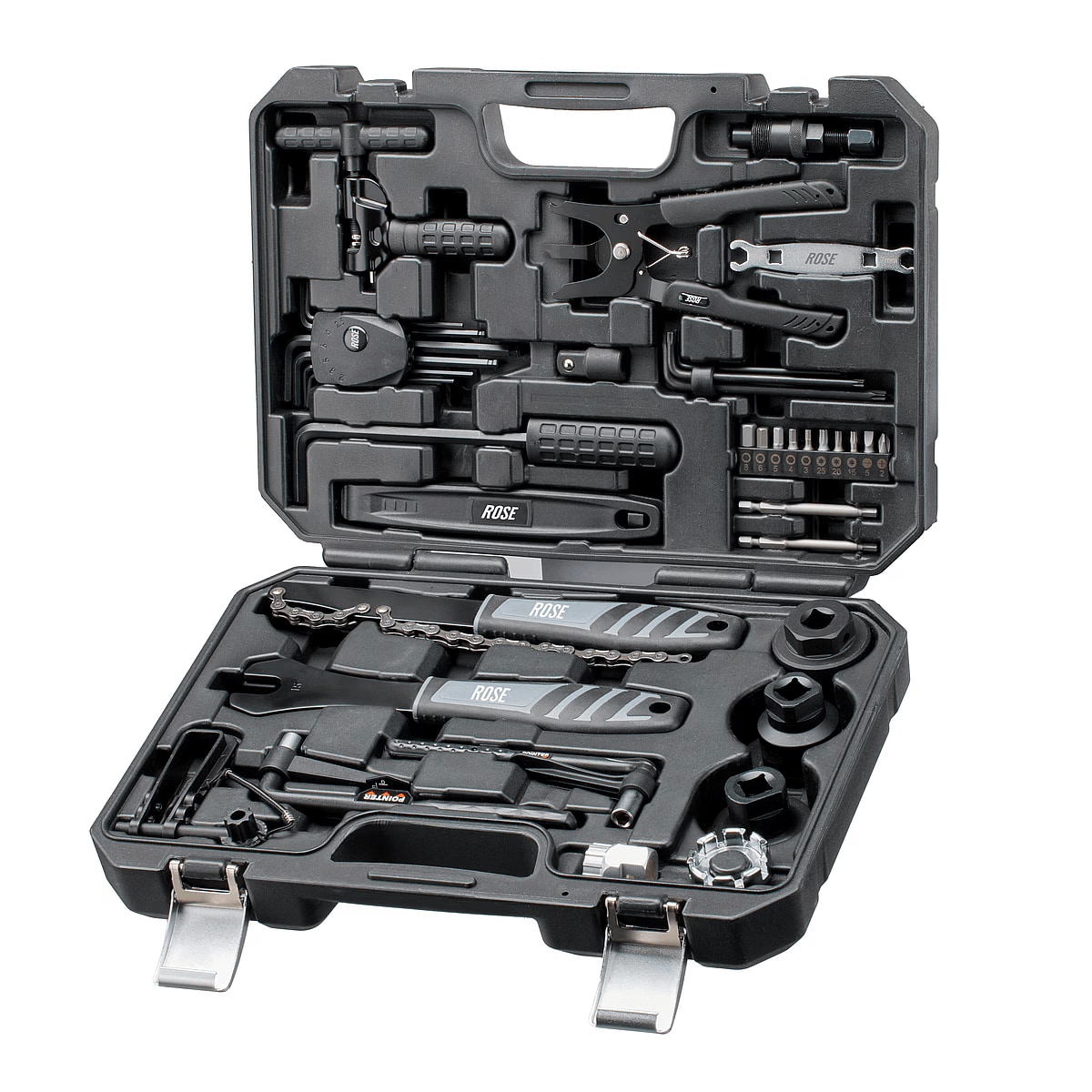

The ROSE ALL2GETHER e-bike tool case has been specially designed for repair and maintenance work on e-bikes.

Among other things, the case contains three different tools for removing chainring lockrings from common e-bike drive manufacturers. You also get a practical tool for blocking the motor freewheel so that you can move the bike chain backwards when stationary, which makes maintenance and cleaning work much easier.

You will also find numerous tools in the ALL2GETHER that you can use for maintenance and repairs on non-motorised bikes.

Details Rose ALL2GETHER e-bike tool case:
• Tool box with special tools for e-bikes
• Contains a total of 21 different tools
• Allows for working on the chain, cassette, crank and wheels, among others
• Incl. two torque keys (setting range 3-10 Nm / 10-20 Nm)
• Robust plastic case for storage and organisation

Contents of the Rose ALL2GETHER e-bike tool case:
• Crank puller for Octalink, square taper, ISIS, Power Spline and Power Drive bottom brackets
• 2-in-1 master link pliers (open and close)
• Double open-end spanner 7 and 8 mm (with ¼" socket)

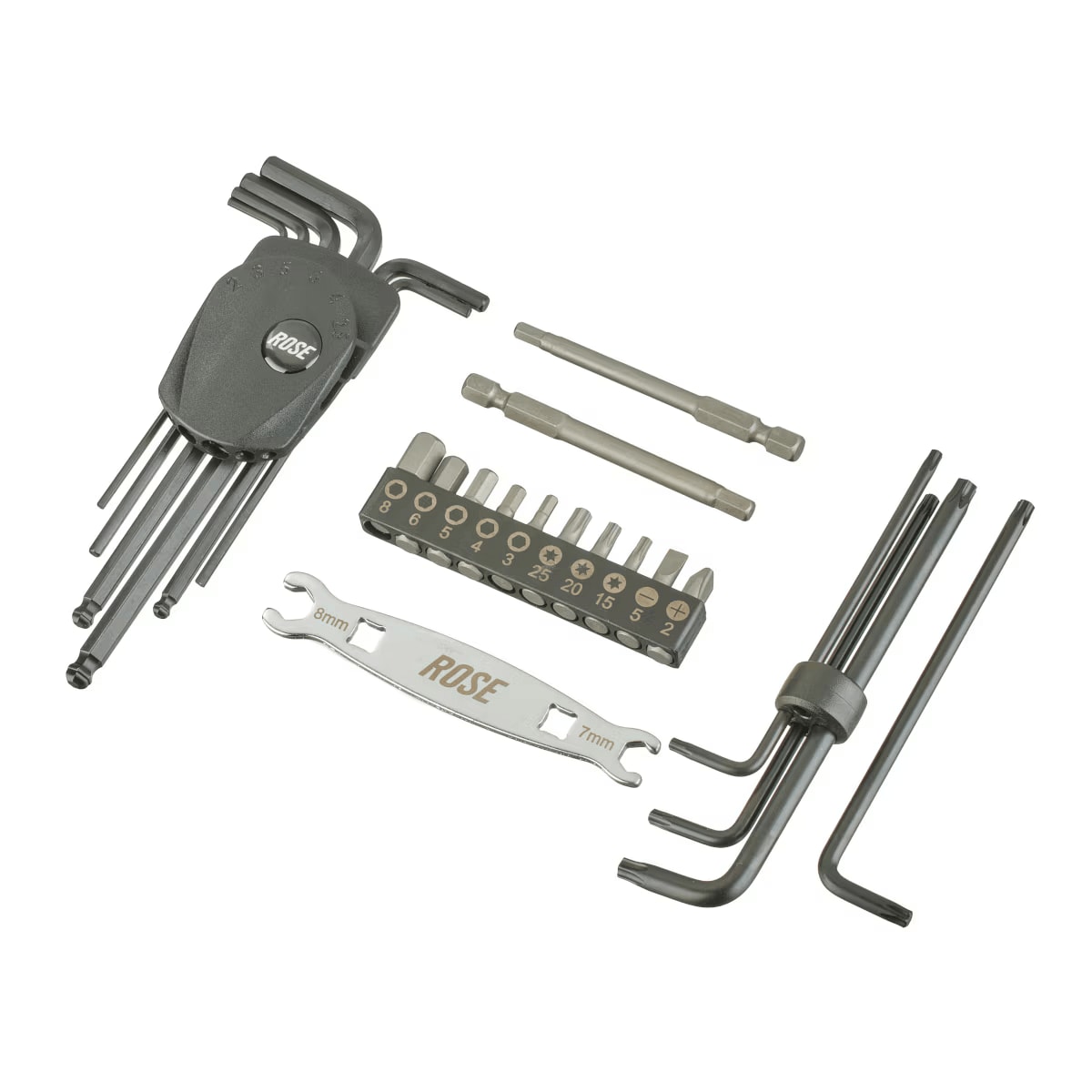

• Star-shaped key set: T15 / T20 / T25 / T30
• ¼" bit set: hex: 3 / 4 / 5 / 6 / 8 mm, star-shaped: T15 / T20 / T25, flat-head: Size 5, cross-head: Size 2
• ¼" long bit: 4 / 5 mm

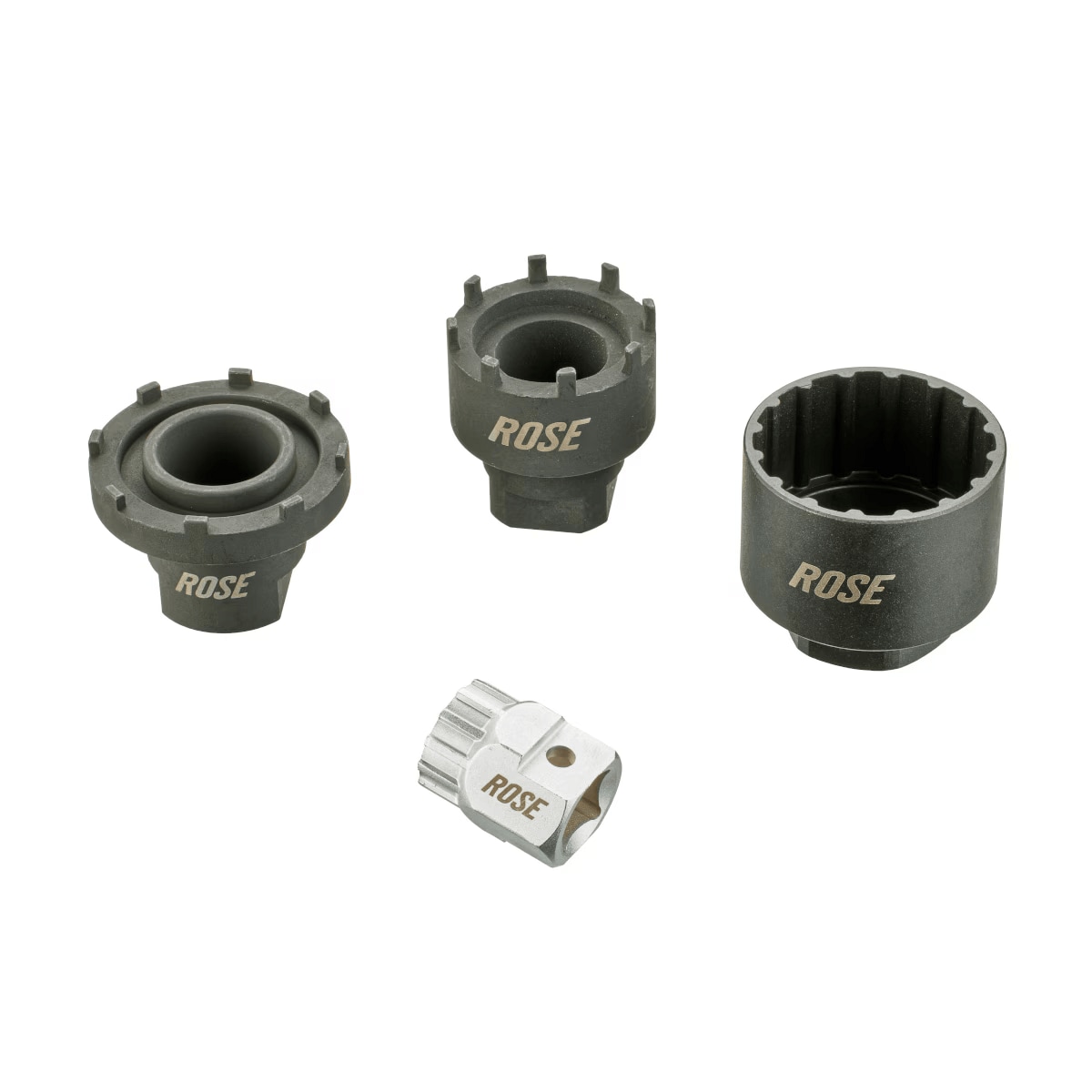

• E-bike lockring tool with (Ø 44–45 mm, 16 notches) ½“ socket or for 32 mm spanner. Suitable for SHIMANO Hollowtech II, Truvativ, FSA, MegaExo, Campagnolo, Ultra-Torque, TOKEN, GXP, SRAM, SunRace, Centerlock brake disc lockrings, mid-drive chainring lockrings for Bafang M420, M500, M600.
• E-bike lockring tool with ½“ socket or for 24 mm spanner. Suitable for Bosch Active, Performance and Performance Line CX Gen. 3/4/5th (incl. Bosch Smart System / BES3), Yamaha PW-X, PW-S2 and Brose drives
• E-bike lockring tool with ½“ socket or for 24 mm spanner. Compatible with
Bosch Active, Performance and Performance Line CX Gen. 2 from 2014 to 2017.
• Universal spoke wrench 15G-9G
(3.0 / 3.2 / 3.5 / 4.0 / 4.2 / 5.0 / 5.5 mm)
• Cassette lockring tool SHIMANO HG/IG, SRAM with ½“ socket or for 19/24 mm spanner.
Suitable for SHIMANO, Sun Race, SRAM, Chris King, Suntour and other cassette lockrings.
• Torque wrench: Setting range 10-20 Nm with hexagon bit holder
• Torque wrench: Setting range 3-10 Nm with hexagon bit holder
• 2-in-1 e-bike crank helper: Freewheel lock for e-bike motor and star cap tool for SHIMANO Hollowtech II cranks.

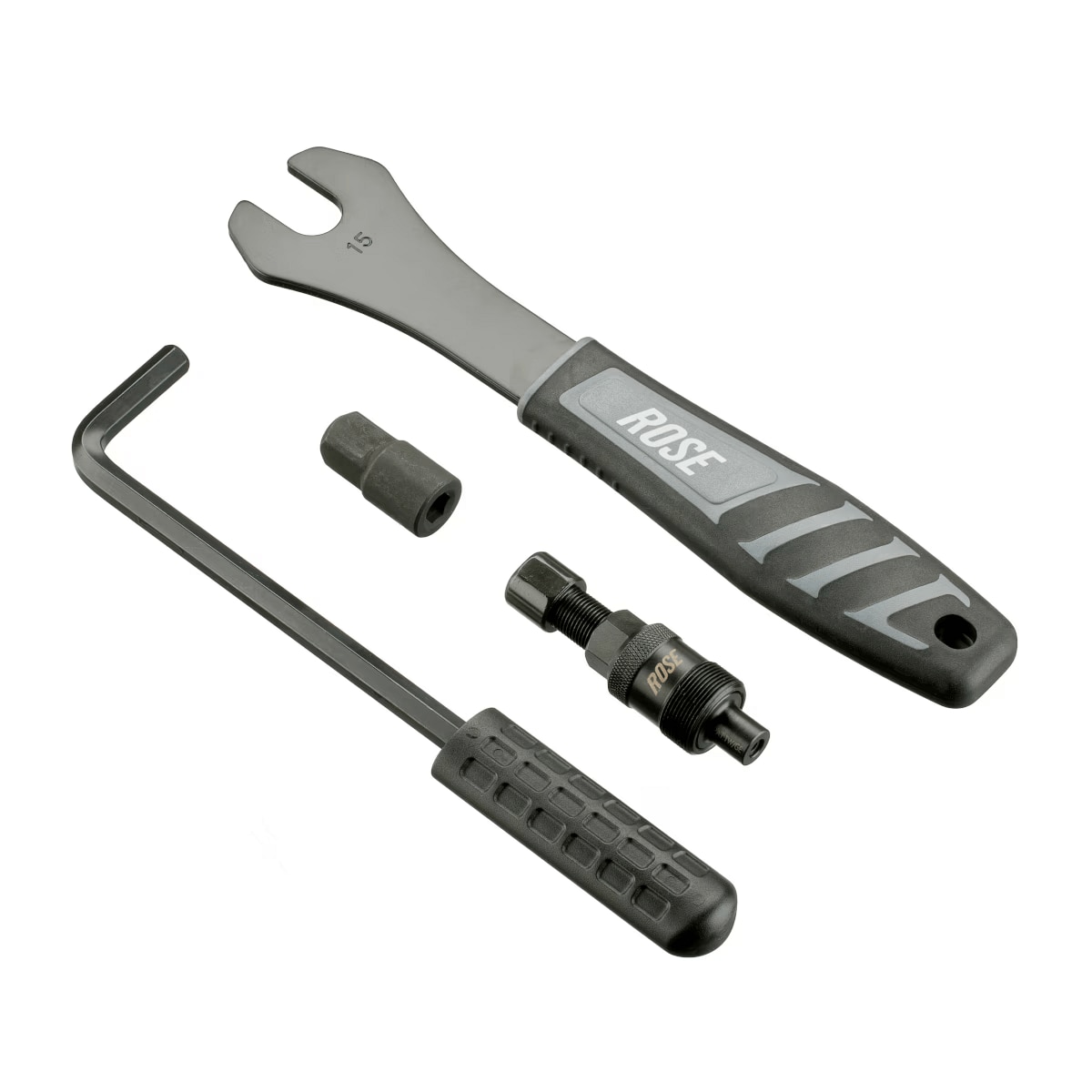

• Pedal wrench (15 mm open-end spanner)

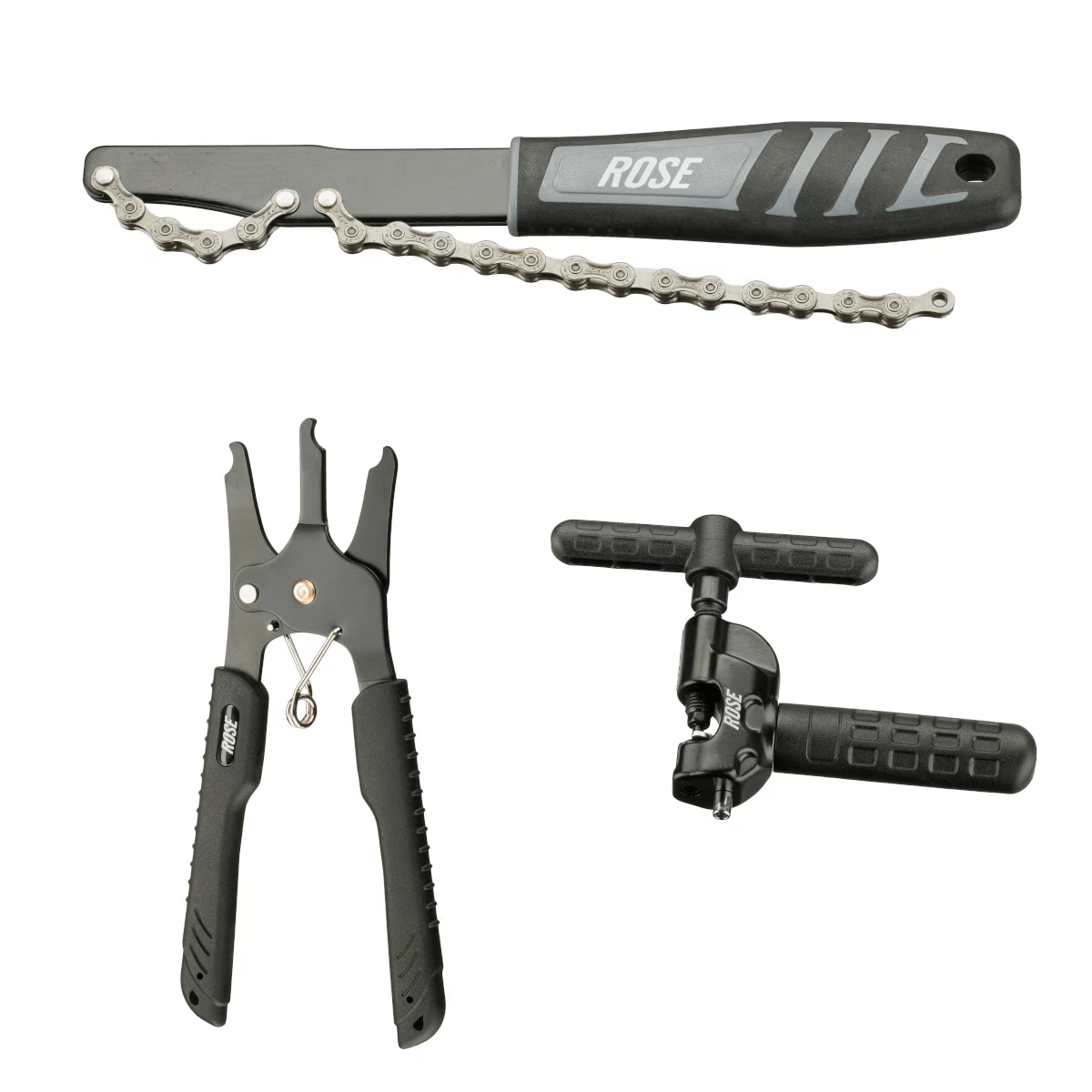

• Chain whip for all 9- to 12-speed cassettes
• XXL composite tyre levers with fixing hook
• Large 8 mm hexagon L-key with handle
• L-type hex wrench set: 2 / 2.5 / 3 / 4 / 5 / 6 mm (from 4 mm with ball head)
• Plug-in adapter: from 8 mm hexagon to ½“ square
• Chain tool: suitable for 1/8" hub gear and singlespeed chains, 5- to 12-speed bicycle chains and Campagnolo 8- to 10-speed bicycle chains


In the box:
• 1 Rose S 5000-E HD workstand with mechanical lifting function
• 1 tool plate
• 1 transport bag
• 1 Rose ALL2GETHER e-bike tool case


Tip:
The ROSE handlebar stabiliser (prod. code 1449507) prevents the handlebar from turning over during assembly work.
Replacement rubbers for the clamping jaws of the retaining claw can be found under prod. code 2349454.

Note:
Does NOT contain tools for Bosch eBike Systems Classic / Classic+ Line (2011-2014) and hubs or hub motors with screw sprocket standard.


Manufacturer: Rose Bikes GmbH, Schersweide 4, 46395 Bocholt, Germany, www.rosebikes.de
